Wildmman's
LED Sled Kart
Wildmman's LED Sled is a prone position electric mobility device.

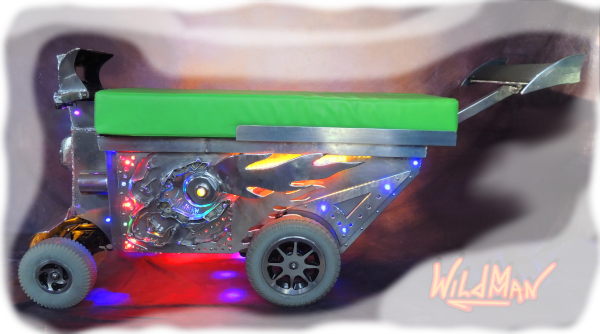

Left Side View Closeup
The kart is made from almost all recycled materials. The only things not recycled are the LED lights, cameras, and media player.
Front Left Side Closeup View
The front LED headlights are cut from recycled aluminum tanks. The 20watt center lights are surrounded by a red LED ring. The side LEDs are embedded in the aluminum body. Many of the LEDs are color rotating.
Right Side View
The right side of the LED Sled is entirely different from the left. This side has all the controlling switches and media player.

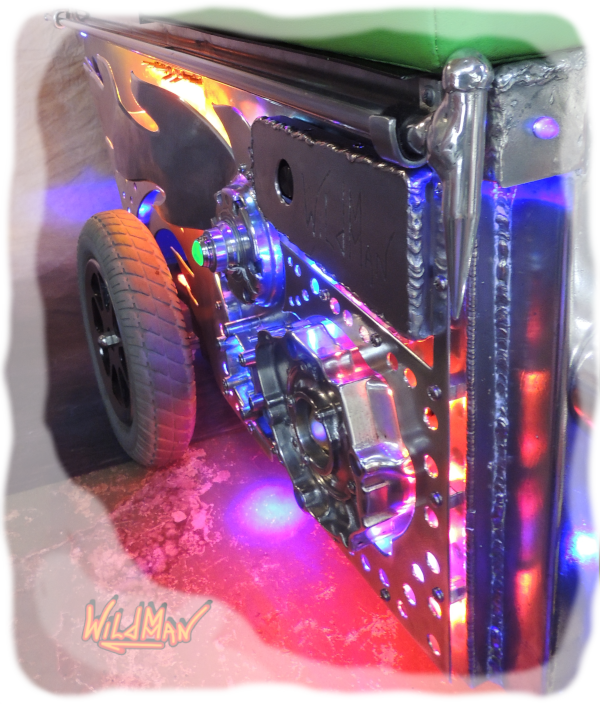

Right Side Closeup View
Many of the side pieces have been created by slicing a 1980's Yamaha aluminum 3-Wheeler crankcase into vertical pieces, then filed and polished. The LED lights are embedded in the crankcase bolt holes with clear resin.

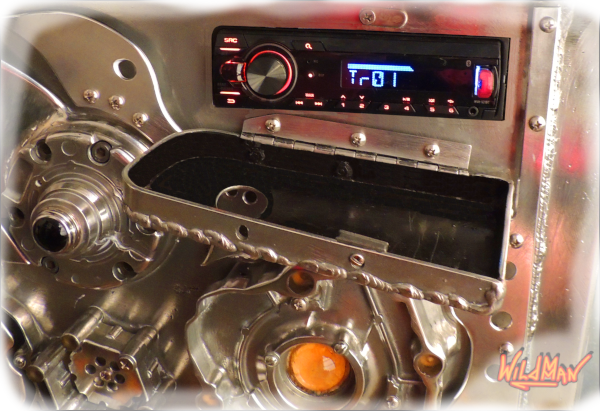

Media Player View
A hinged aluminum lid protects the media player from the weather.
Front Right View
The front of the LED Sled has a hand hammered head with it's tongue sticking out.
Rear View
The speakers are angled toward the ground to refract the sound.
Electrical Wiring View
Two different 24v/12v converters are used to power everything except the 24v drive motor.
